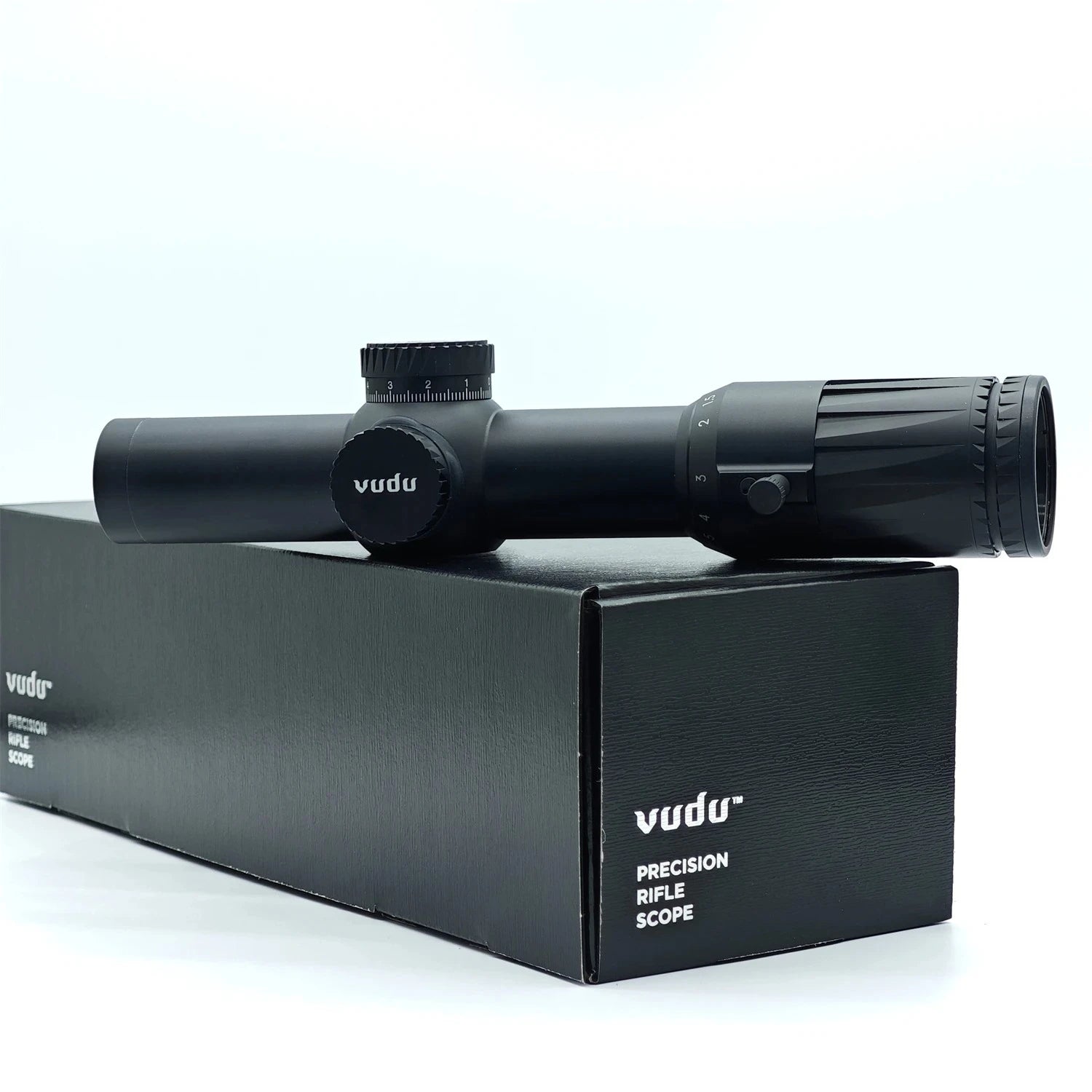

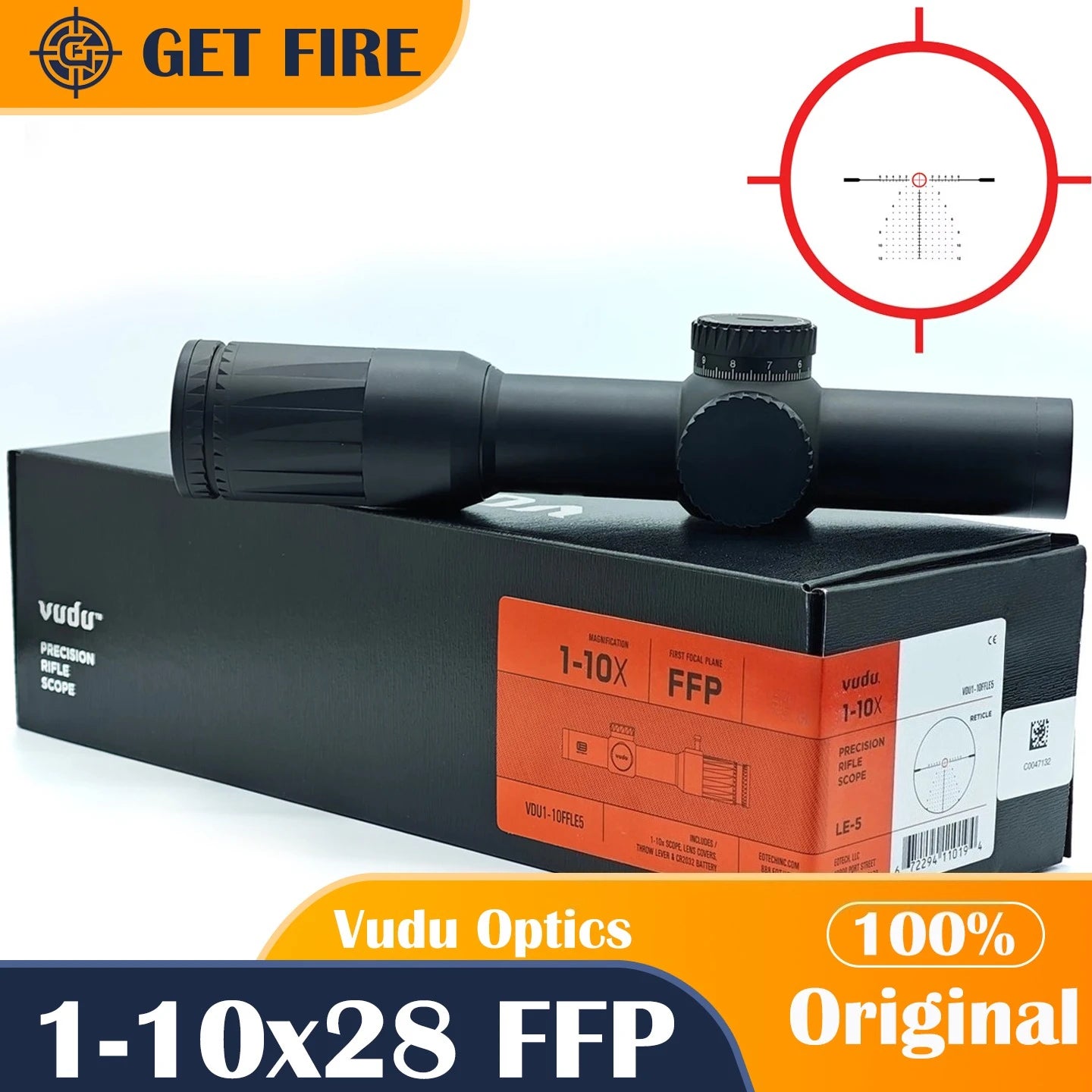

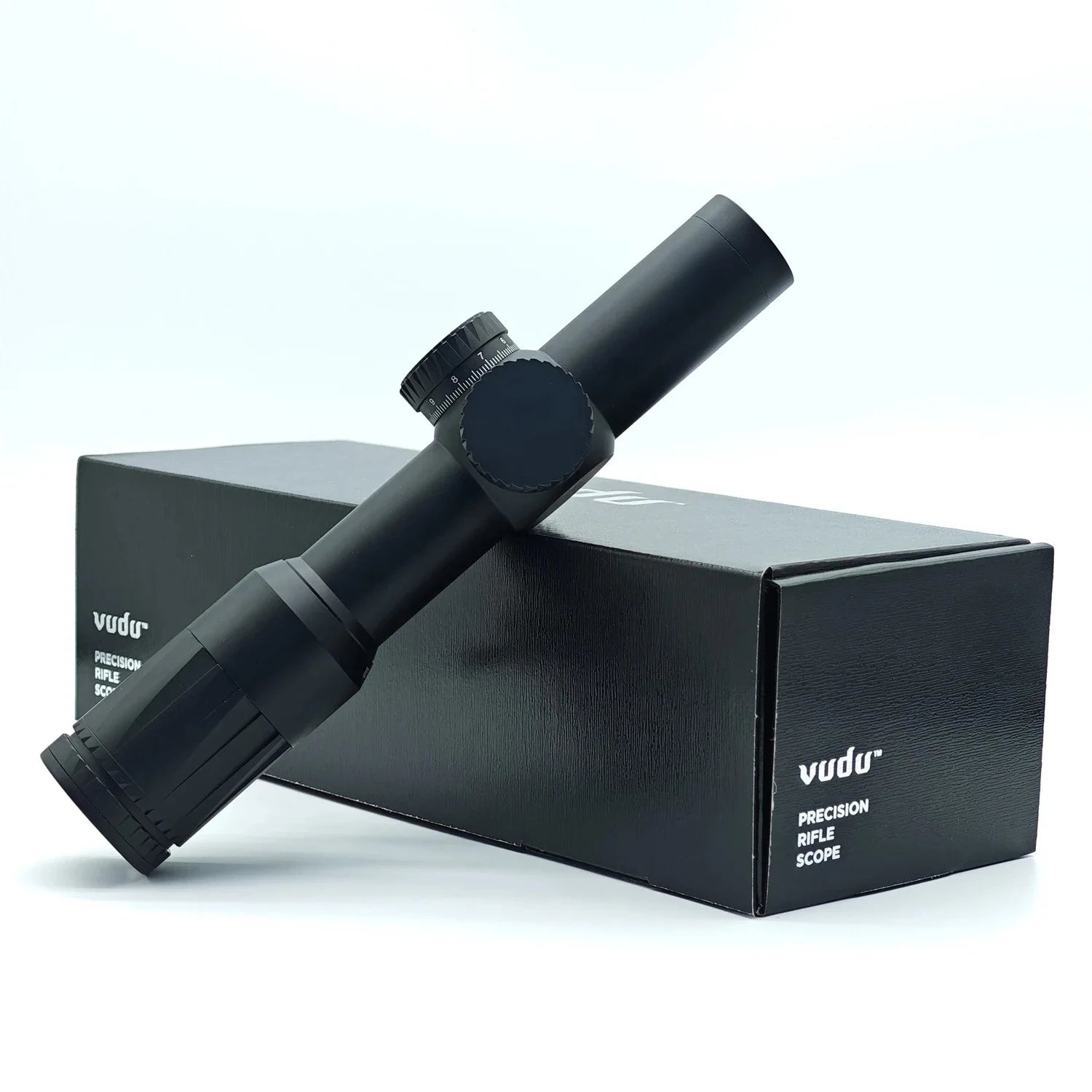

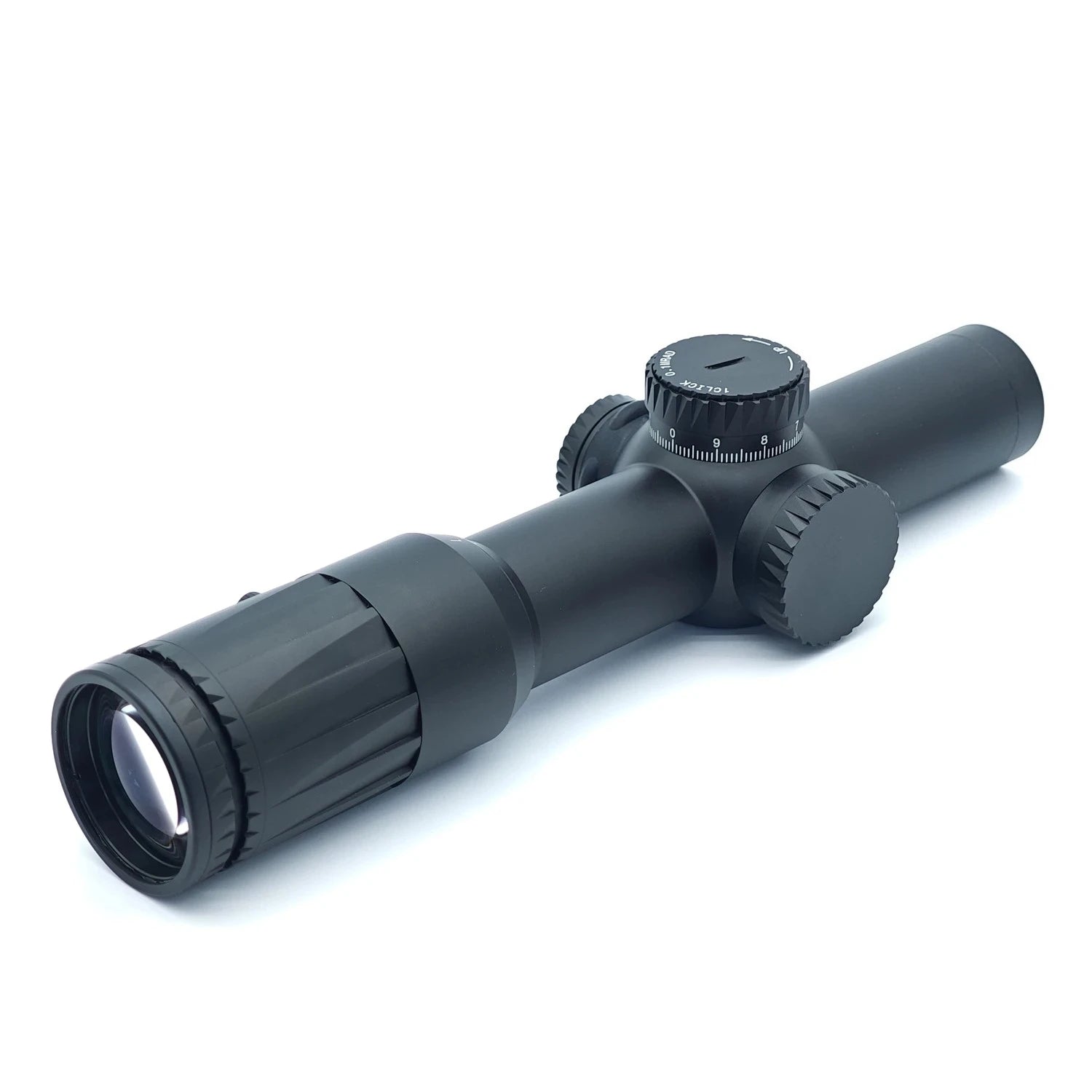

Original Vudu 1-10x28mm SR5 MRAD Reticle FFP First Focal Plane Riflescope Precision Rifle Scope Sight Lunetas

Original Vudu 1-10x28mm SR5 MRAD Reticle FFP First Focal Plane Riflescope Precision Rifle Scope Sight Lunetas

Regular price $474.00 USD
Regular price $729.00 USD Sale price $474.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Quantity
  • Brand Name : NONE
  • Type : RIFLE
  • Origin : Mainland China
  • High-concerned chemical : None
  • Magnification : >6
  • Tube Dia : 34mm
  • Function : Lens
  • illumination : Yes
  • Model Number : 1-10x28 FFP
  • Lens coating : Ed
  • Adjustment : mard
  • Side Focus : Yes
  • Focal Plane : First Focal Plane
  • Weight : 21.3 oz
  • Style : SR5 MRAD
  • Material : Aluminum
  • Focal plane : First
  • Compatible Devices : Rifle
  • Sport Type : Hunting
  • Tube : 34mm

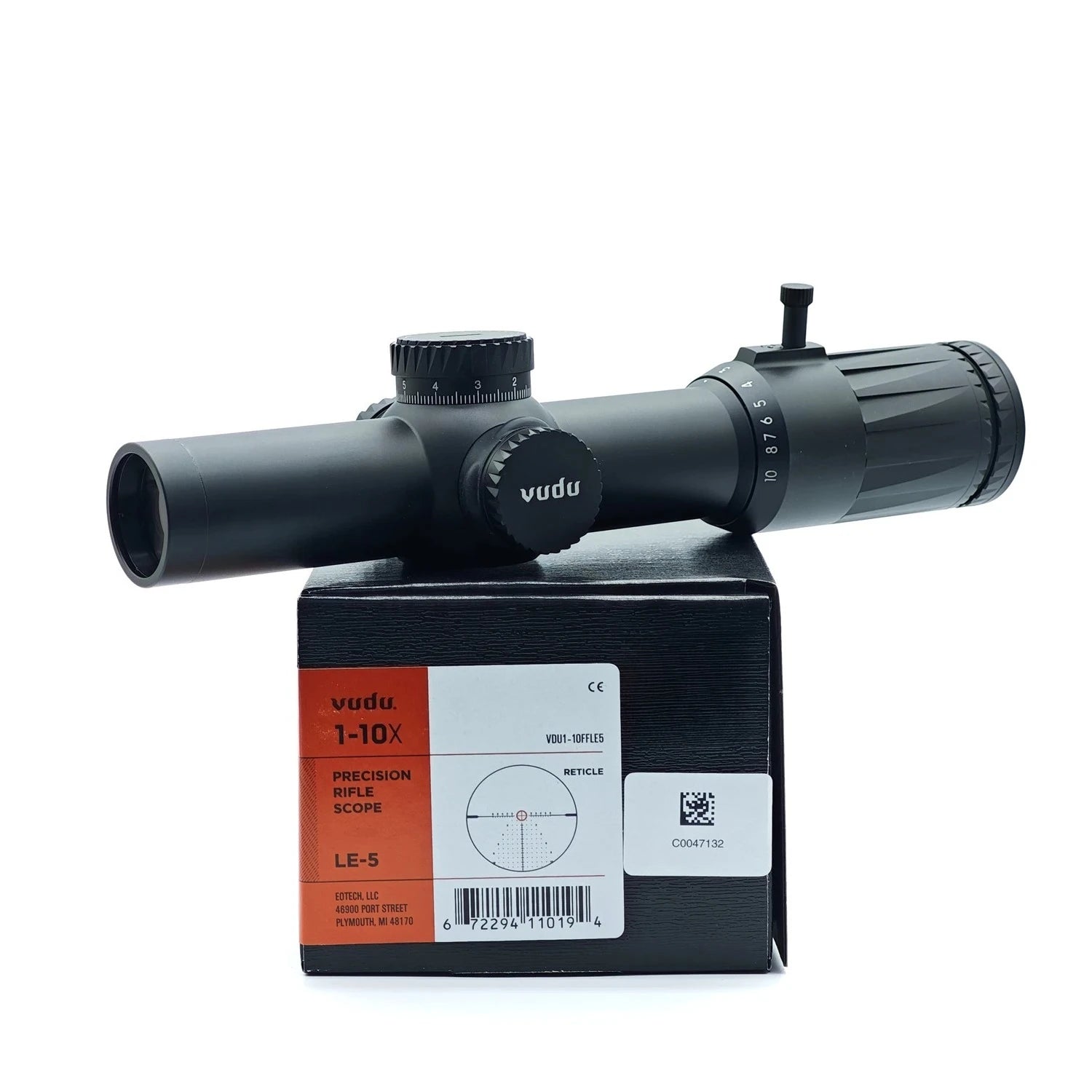

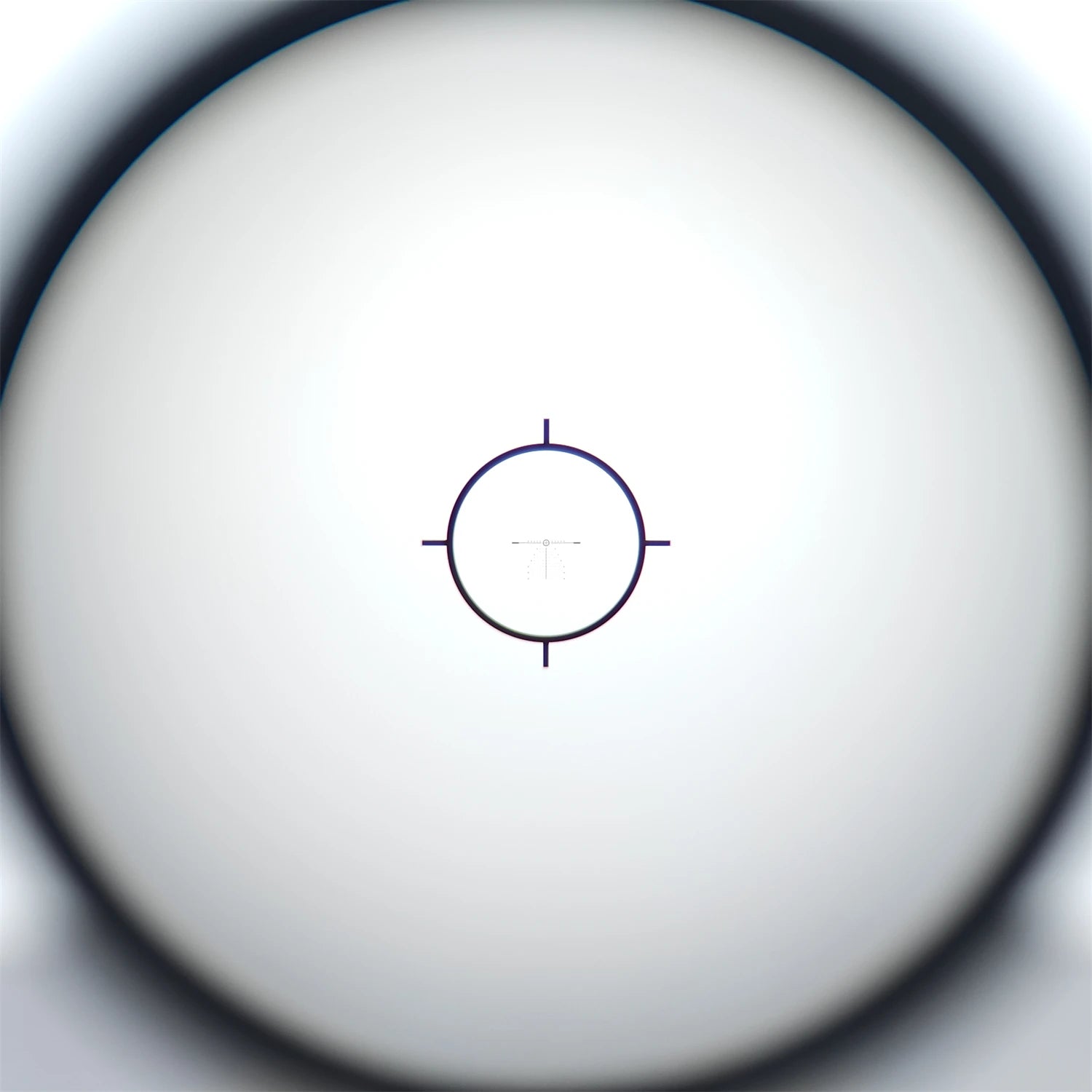

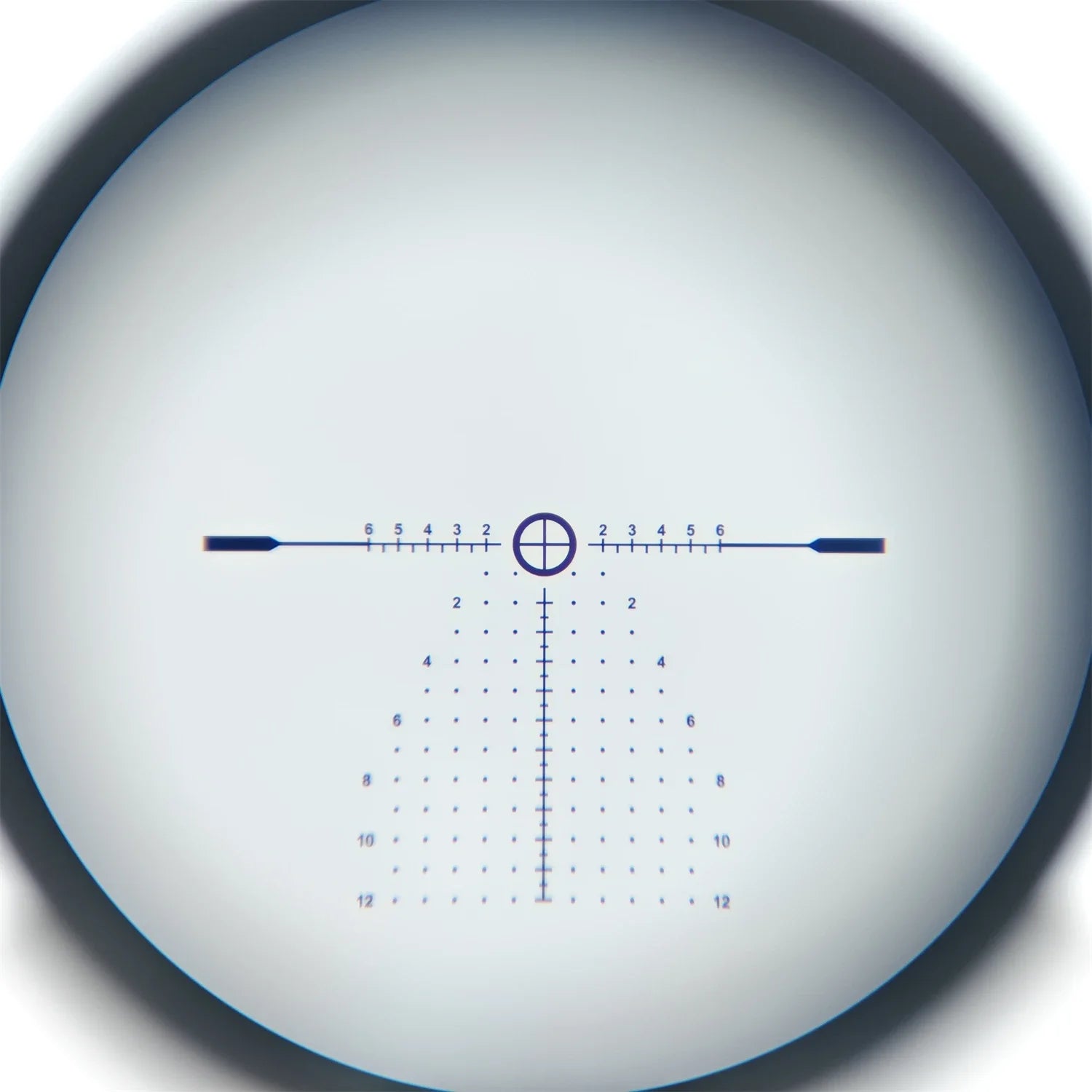

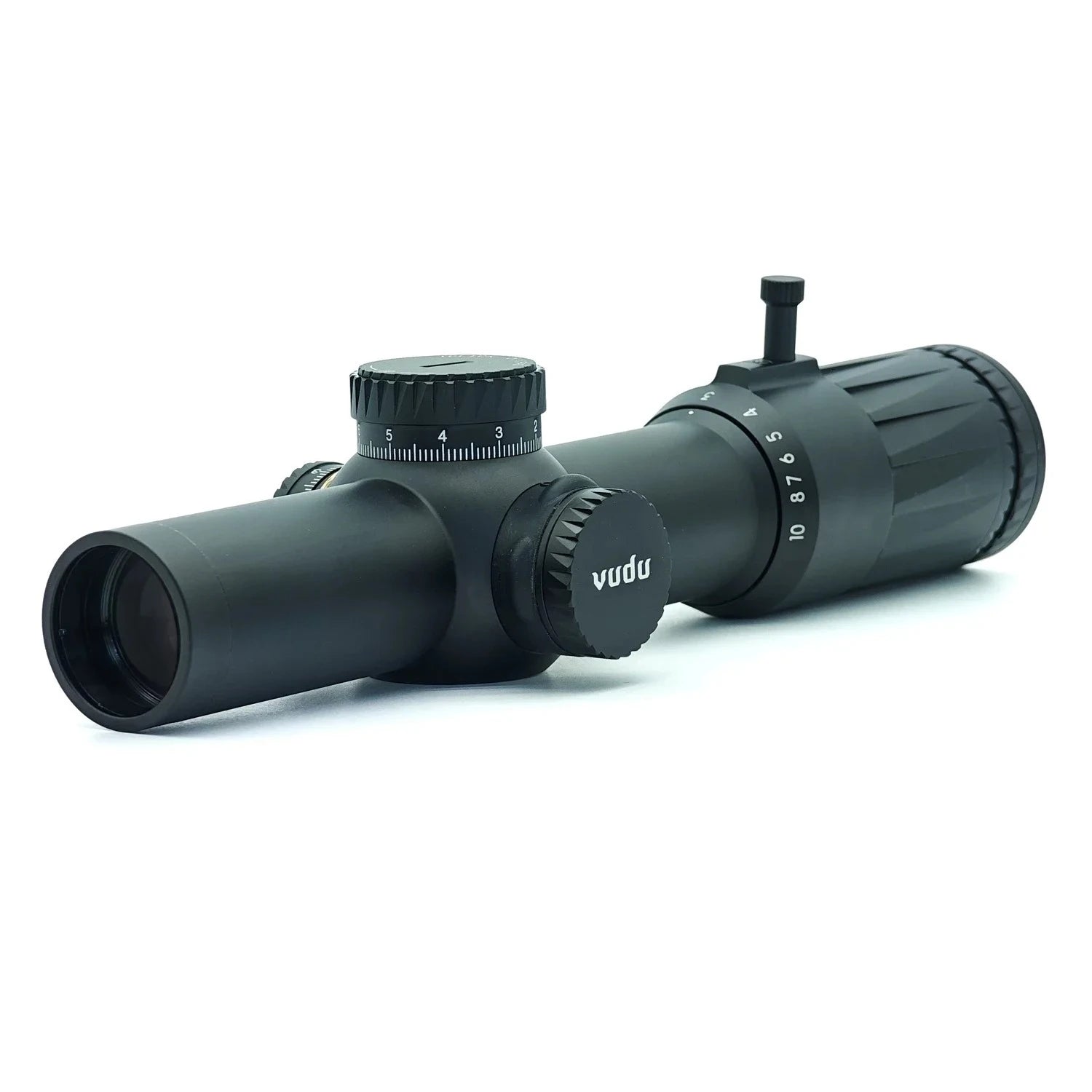

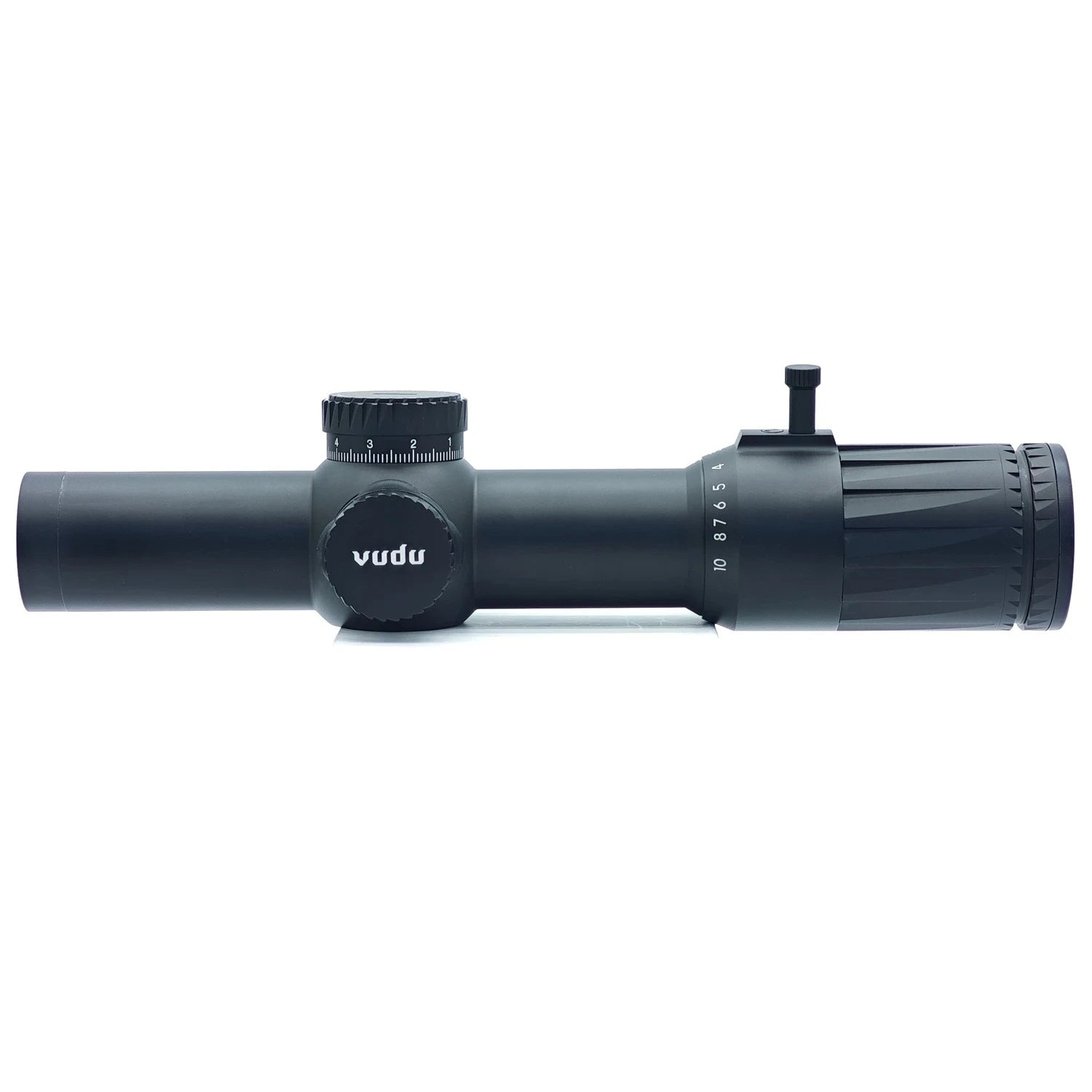

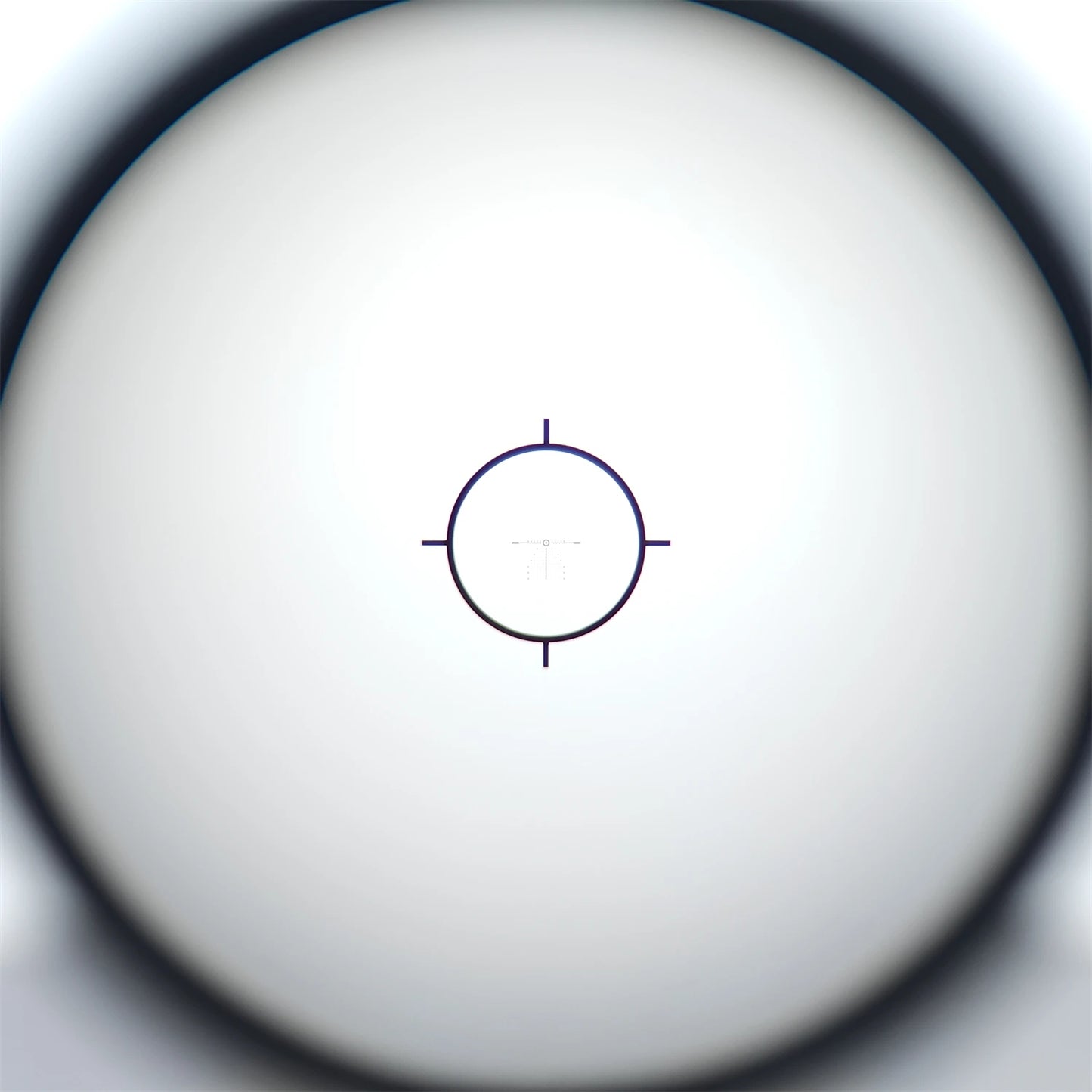

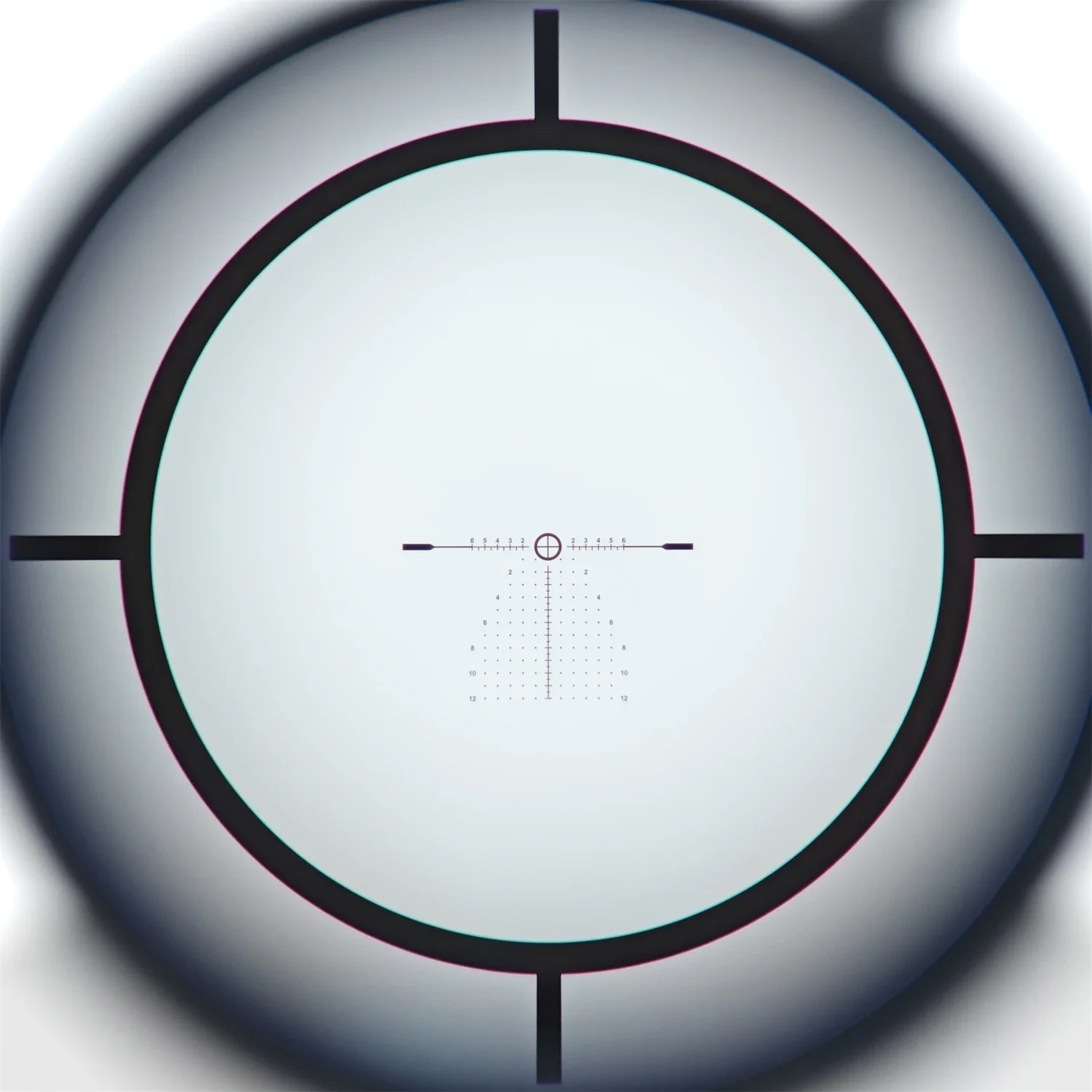

Vudu 1-10x28mm Riflescope combines durability and precision into one high-performance optic! It features a one piece, aircraft grade aluminum tube for superior strength and shock resistance. The lenses are constructed from XC High-Density glass with multi-coatings for exceptional light transmission and outstanding edge-to-edge clarity. The Vudu’s elevation turret is exposed for making adjustments in the field, and uses a unique push-pull locking mechanism to prevent any accidental changes. When making adjustments, the turrets produce an audible and tactile “click” to assist the shooter in making the proper point-of-impact corrections. Other features of the Vudu 1-10x28mm is the advanced SR-5 reticle. The SR-5 is composed of a precise 0.25 MRAD illuminated dot in the middle of an illuminated circle, which sits atop a “Christmas tree” of holdover points as well as horizontal and vertical stadia lines with multiple hash marks. This entire configuration is in the center of EOTech’s exclusive Speed Ring. Thanks to the SR-5’s first focal plane position, the Speed Ring can be used to rapidly acquire and engage targets at shorter ranges and lower magnifications, essentially allowing the shooter to use the Vudu 1-10x28mm like a red dot sight. When the magnification is dialed up, the Speed Ring disappears from view and the SR-5 reticle is brought into full focus. This significantly improves accuracy at longer ranges, and lets the shooter take full advantage of the reticle’s holdover points and hash marks for bullet drop and wind drift compensation.

Features of the Vudu 1-10x28mm:

  • One piece, aircraft grade aluminum tube

  • XC High-Density glass lenses

  • First focal plane, illuminated reticle

  • Exposed elevation turret

Scope Weight:

21.3 oz

Scope Length:

10.63 inches

Magnification Range:

1-10x

Scope Objective Lens Diameter:

28mm

Scope Tube Size / Mount

34mm

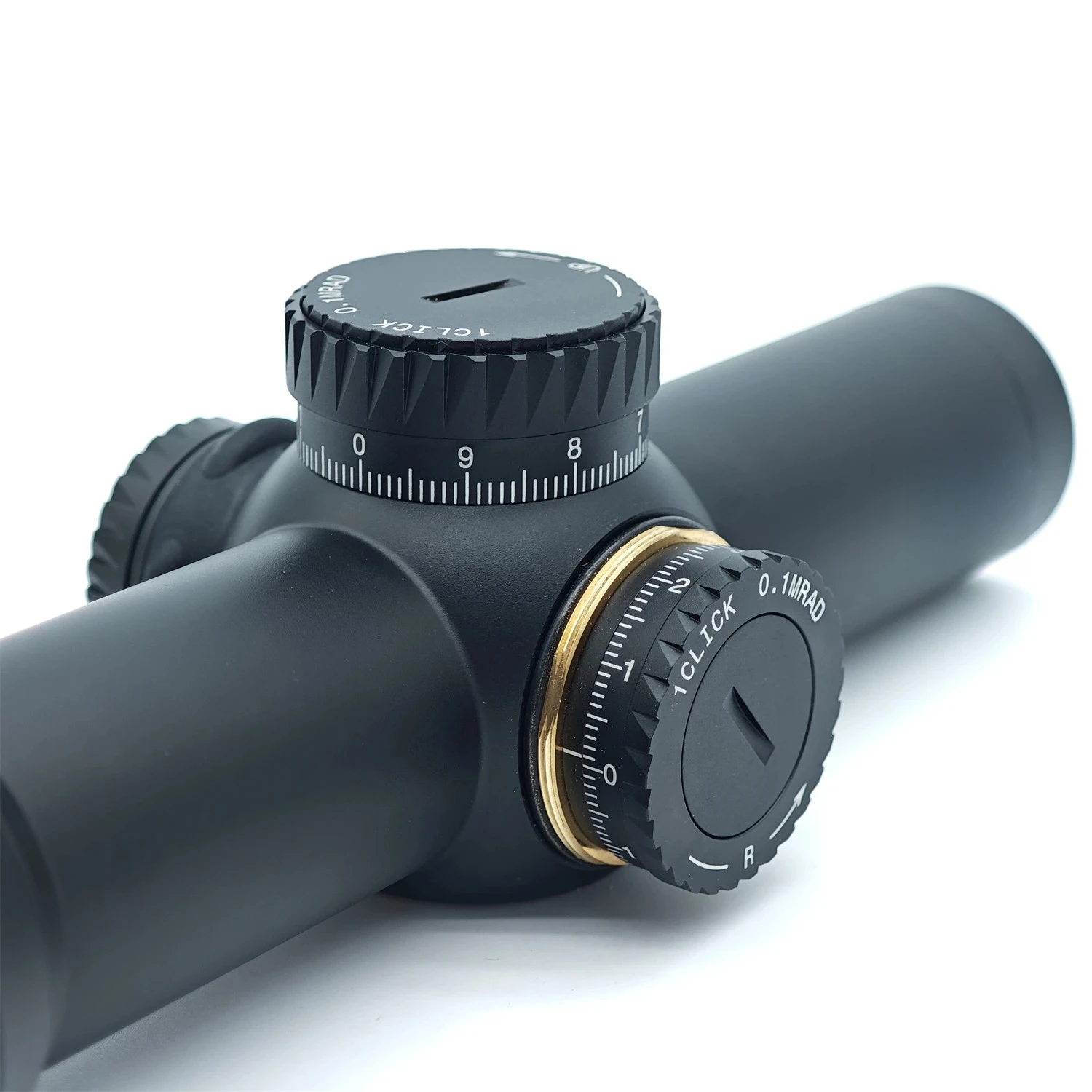

Scope Turret Adjustment:

0.1 MRAD

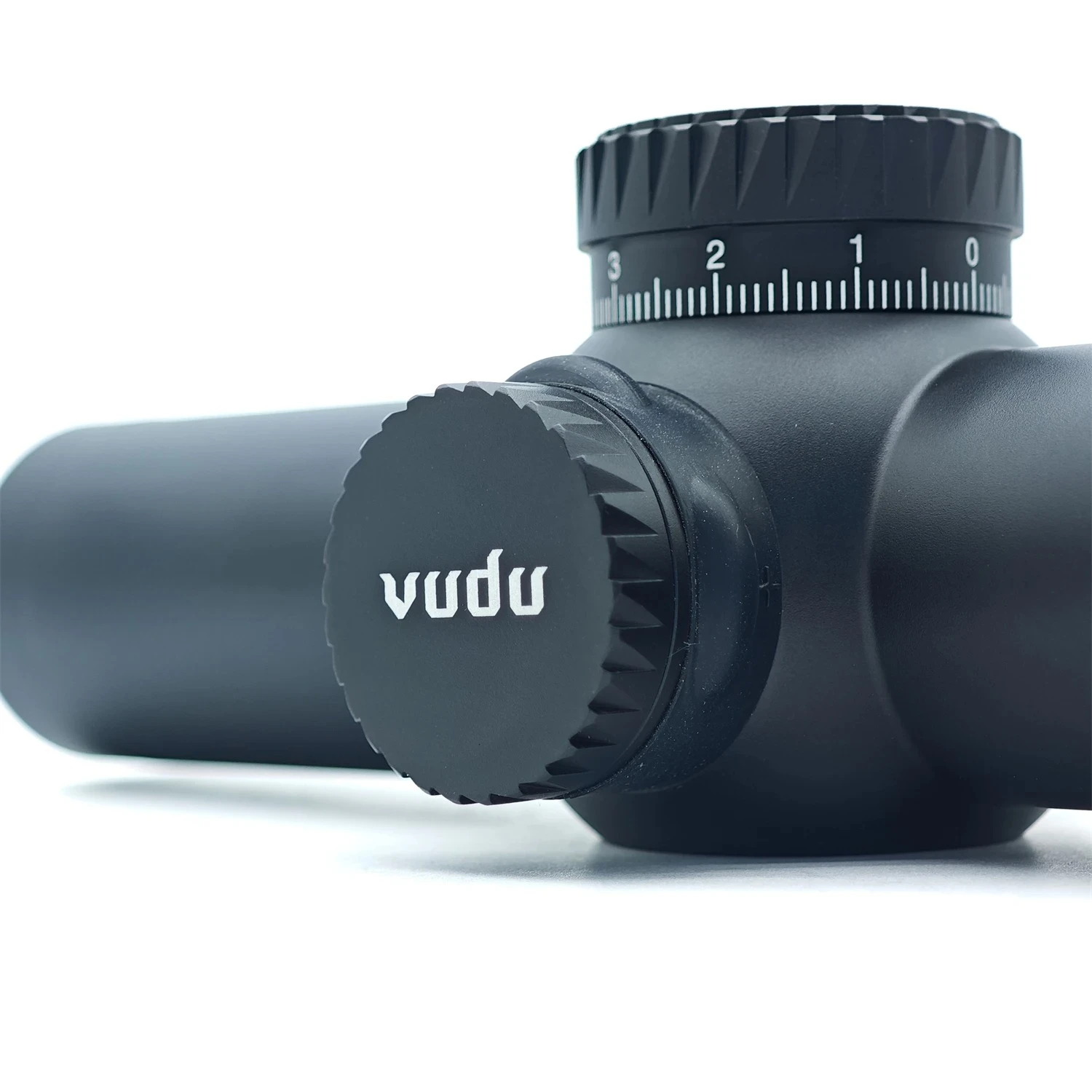

Elevation Adjustment

Exposed
Push/Pull locking mechanism
15 MRAD graduation per rotation
29 MRAD total travel

Windage Adjustment

Capped
15 MRAD graduation per rotation
23 MRAD total travel

Reticle Position:

First Focal Plane

Reticle Details:

SR5

Field of View:

116.6 - 11.7 feet @ 100 yards

Eye Relief:

3.27 - 3.90 inches (low power)
3.35 - 3.62 inches (high power)

Illuminated Reticle:

Yes

Package Includes

Operator Manual
Reticle Manual
Throw Lever

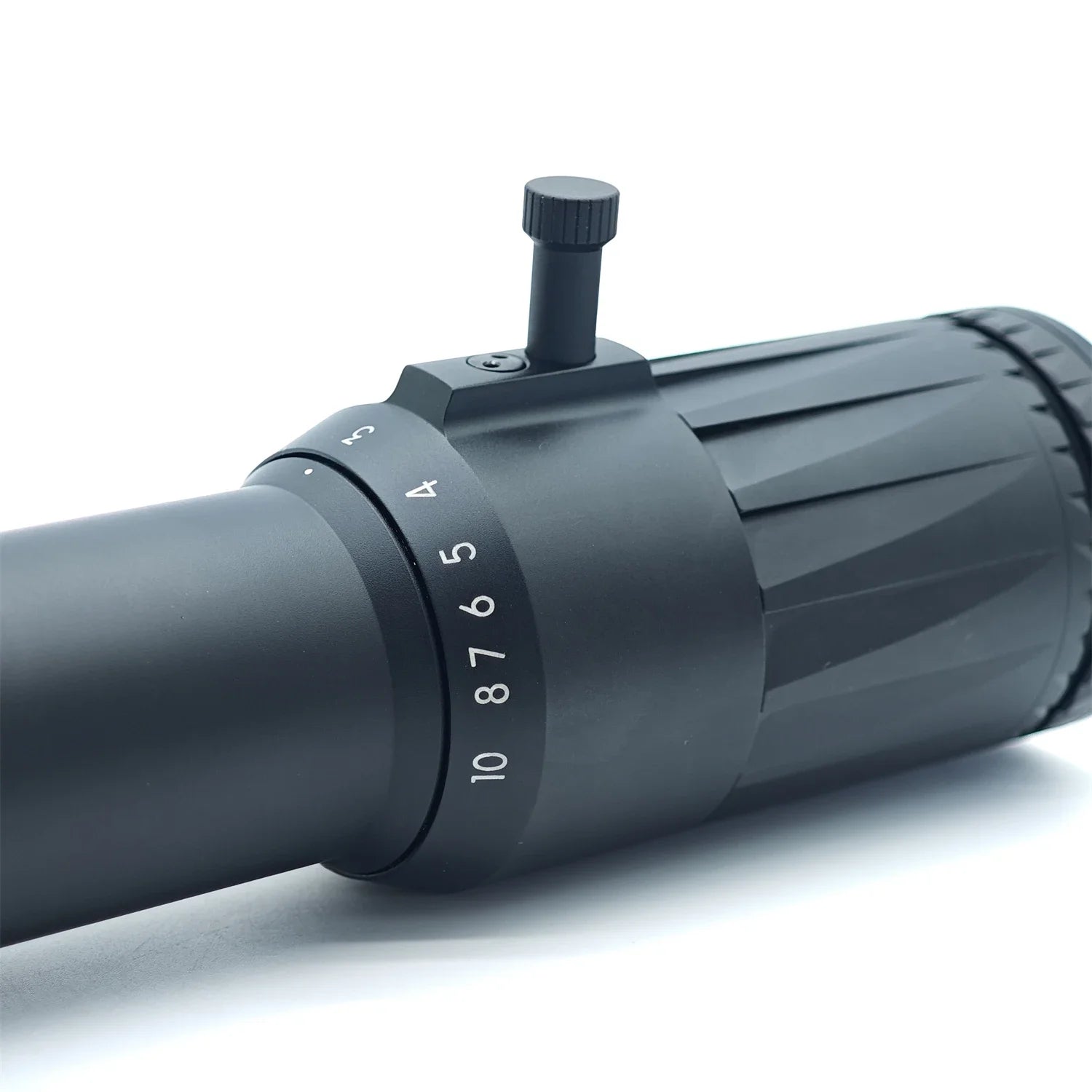

Lens Cleaning Cloth

Finish:

Black

Scope Turret Rotation

Counter Clockwise (CCW)

Item Condition:

New
