Tactical Red Dot Sight 4 Reticle Reflex Adjustable Red Dot Scope Hunting Optics Compact Rifle Airsoft Scope Fit 20mm Rail Mount

Dear Friend,

welcome to Our store. We are a sight manufacturing factory in China. If you want to purchase sight in bulk and get more factory information, please contact online customer service. You will get an unexpected purchase price .

Have a nice day!!!

Reflex Red Dot Sight Instructions:

◆Tubeless design with 22mm x 33mm reflex lens aperture
provides a wide field of view, suitable for rapid-firing or shooting of moving targets besides
normal shooting.

◆Multi-Reticle (4 patterns) or Variable Dot (4 different sizes) are installed.

◆Parallax corrected and unlimited cye-rclief.

◆Allen head screw type windage and clevation click
adjustments,with locking screw .

◆Built-in mount(integrated rail) for standard bases, no need to rezero when remounting the dismounted sight.

◆Very light weight,waterproof and shockproof.

◆Low power consumption for long battery life.

ZEROING:
Select the reticle you desire by turning the reticle selector knob and set the intensity at the best
position for you. With the E/D sight mounted, rest the gun on a solid support and aim at a target 50
to 100 yards(or meters) away. Test shots should be done in the same conditions to achieve
maximum accuracy for adjustment, for which the use of firm rest for firing and same type
cartridge is recommendable. Each click adjustment moves the point of impact by 1
MOA(approximately 1"at 100vbs, 1/2"at 50 yds.)

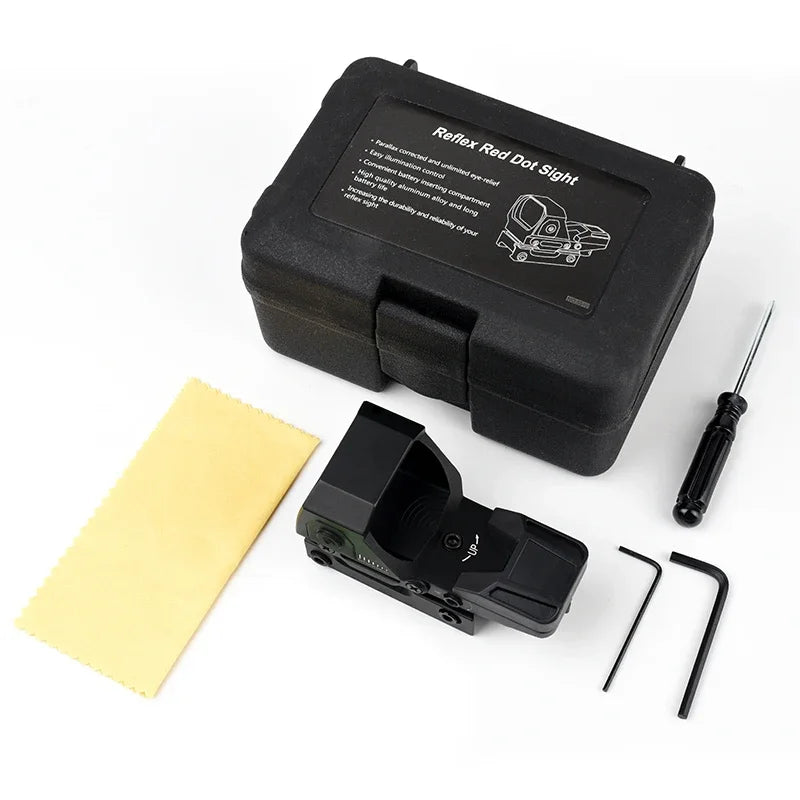

1 x Rifle scope

2 x Wrench

1 x Anti-dust cover

1 x Cleaning cloth

1 x English user manual

1 screwdriver

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you.

Please allow 1-2cm measuring deviation due to manual measurement.















BATTERY:
Your Electro-Dot(E/D) sight is powered by lpc CR2032 cell battery. If your reticle grow dim or there is no light, you will need to replace the batteries. To install them, unscrew battery cover and insert new ones + side up, and replace the cover.

MOUNTING:
Your E/D sight includes an integrated rail that fits standard, dovetailed bases. This is suitable for
most applications. Because of unlimited eye-relief with the E/D sight, you should provide at least
three inches of clearance between the end of LED & Mirror housing and your eye when shooting.
Set the rail onto the base so that the rail claw align with the crosscut grooves. Work the claw into
the base until the cross-bolt seats into the groove. Securely tighten the locking screw with an Allen
wrench included in the E/D sight.
